Ready-made lift concept
The lift is delivered in ready-made elements with everything you need for installation.
Cabin lifts
C1 Pure

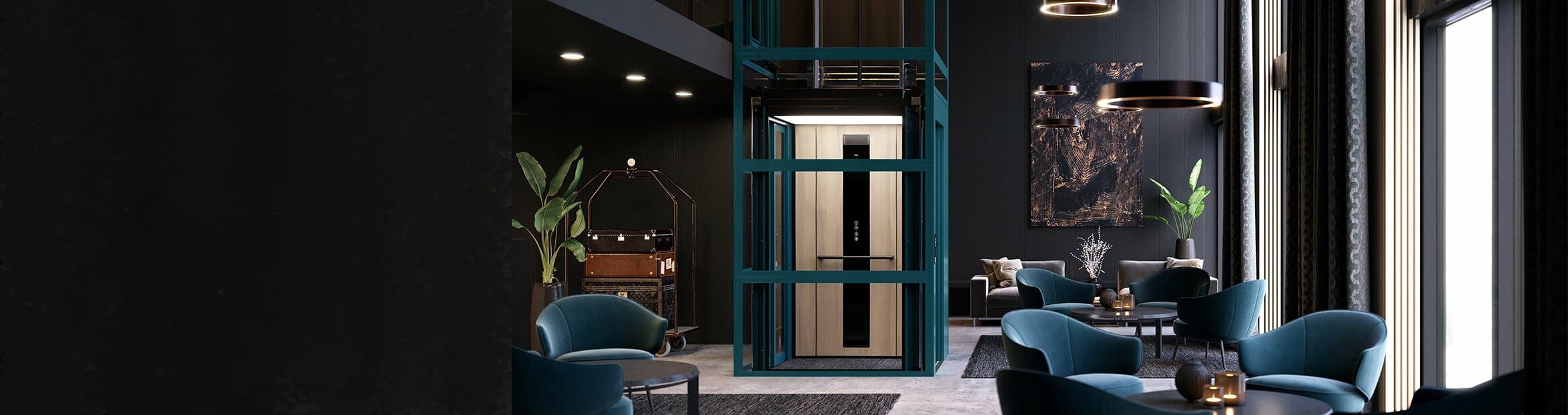

Cabin Lift Cibes C1 Pure
Affordable, space-efficient and easy to install, cabin lift C1 Pure is a great lift solution for public, commercial and residential buildings.
- Timeless Scandinavian design
- Space-saving solution
- Low construction costs
Reduced building costs
The lift is available with a ready-made shaft and requires minimal building adaptation for installation, resulting in reduced building costs.
Small footprint
Unlike most lifts, C1 Pure has no machinery above or beneath the lift, everything fits inside the shaft. This makes C1 Pure very space-efficient and easy to install.
Fast and easy installation
The ready-made lift concept can be installed in just a few days and requires minimal building preparation. All electrics are plug and play and the C1 Pure is available in versions prepared for 3×400, 3×230 and 1×230 VAC power supply.
Cost-efficient cabin lift
Are you looking for a reliable and cost-efficient lift solution which does not take several weeks to build? The C1 Pure can be installed in just a few days and is the world’s only screw-driven cabin lift with one-touch controls and comfortable sliding doors.
*prices starting from £27,000
Lift design inspired by everyday life
Cibes C1 Pure is a platform lift designed to make everyday life easier, at home, at work and in public. Discover a unique screw-driven cabin lift that provides first class comfort.
The magic of glass
Glass is essential to modern architecture because it opens the space and brings an abundance of natural light into the room. The lift shaft, cabin and doors of the Cibes C1 Pure are available in glass.
One touch operation
Equipped with a fully enclosed lift car, the Cibes C1 Pure takes you to the floor of your choice with one single push of the button.
Small footprint
The Cibes C1 Pure is a machine room less, screw-driven platform lift that requires much less floor space than a conventional lift.
Elegant sliding doors
The elegant sliding doors of the landings and cabin provide a superior level of comfort and are available with door panels in glass or steel.
Energy-saving LED
The cabin ceiling is designed with durable and green LED technology and equipped with smart and energy-saving light programming.
Cabin lift with a ready-made shaft
The Cibes C1 Pure is also available with an elegant, ready-made lift shaft of steel or glazed panels to reduce building time and construction costs.
Cabin lift in a masonry shaft
The Cibes C1 Pure can be delivered without a ready-made shaft and fitted inside a masonry shaft for a seamless integration with your interior design.
Machine room less
2500 mm headroom
100 mm lift pit
Seamless integration
Accessibility options
Are you looking for a passenger lift solution that complies with all relevant accessibility standards? The C1 Pure is available with a range of accessibility accessories that will adapt to the requirements of any public or commercial project.
Horizontal control panel
50x50 mm call buttons
Cabin controls
Double control panels
Lift controls
The horizontal control panel in stainless steel is available as a single unit for the machinery side (side D), or as a double unit (side D and B). On the D side, the control panel is delivered with 2 sturdy handrails in black, anodised aluminium. The additional control panel on the B side is delivered without handrails. The service panel is always delivered in stainless steel to match the horizontal control panel.
Lift controls
Horizontal control panel in stainless steel with 50×50 mm tactile push buttons equipped with back light and Braille, compliant with EN 81-70. User-friendly, 50×50 mm tactile call buttons with back light, compliant with EN 81-70. Available with face plate in any RAL or premium colour as an option.
Discover our mirrors
Wall mounted mirrors are a great visual aid for entering and exiting the lift, especially for wheelchair users. We offer you several wall mounted mirror options:
– Mirror for side A or C, facing the door.
– Mirror for side B, facing the machinery side.
Wall mounted mirror side A/C
Wall mounted mirror side B
Mirror wall side A/C
Energy Label A
The Cibes C1 Pure is equipped with our latest, optimised drive system as standard to offer you energy-efficient lift operation and a user experience with the highest level of comfort.
- Energy Label A
- Quiet operation
- Smooth travel
Energy performance measured in accordance with EN-ISO 25745-2:2015.
Environmental Product Declaration
The Environmental Product Declaration (EPD) delivers standardised, third-party verified documentation of Cibes C1 Pure’s environmental impact throughout its lifecycle. It also enables you to compare the environmental performance of Cibes C1 Pure to lifts of other manufacturers and makes the Cibes C1 Pure eligible for projects that need to comply with green building certification programs, such as BREEAM, LEED, or DGNB.
Build your lift
Are you looking to buy a lift and want to try out different design ideas? Try our new lift configurator!
CE Marked
Our lifts are type certified by the notified body Liftinstituut B.V. and are allowed to carry the CE mark.
Swedish quality est 1947
Cibes Lift was founded in 1947 and our lifts have been designed and manufactured in Sweden ever since.
Safe and easy to use
Our lifts meet the high and exacting requirements of European safety standards and are safe and easy to use.
Ecolabel listing
The Cibes C1 Pure is listed in the database for building products that can be used in Nordic Swan Ecolabelled Buildings.
Contact us
Find out how we can provide you with the best lift solution for your needs!
Specifications and model details
Technical information
- Installation:Indoor
- Rated load:900 x 950 mm – 300 kg, 900 x 1200 mm – 375 kg, 900 x 1400 mm – 450 kg, 1100 x 1200 mm – 525 kg, 1100 x 1400 mm – 630 kg, 1100 x 1700 mm – 630 kg
- Power supply:3 × 230 VAC /3 × 400 VAC, 50/60 Hz, 16 A, min. 5 × 2,5 mm², 1 × 230 VAC 50/60 Hz, 32 A, min. 3 × 6,0 mm²
- Speed:max 0.15 m/s
- Min headroom:Top floor 2500 mm
- Lift pit:100 mm (120 mm if the floor is fitted with wood laminate or tiles)
- Drive system:Screw and nut
- Max travel:15 m
- Max number of stops:6
- Lift controls:One touch (automatic drive)
- Motor Power:2.2 kW
- Machine room:Integrated (MRL)
- Door configuration:Single access, open-through, adjacent
- Directives and standards:MD 2006/42/EC, applicable parts of EN 81-41, EN 81-20 and EN 81-70
Complete specifications and lift sizes
Check out the full Complete specifications and model details of C1 Pure.
View specifications
