Space-saving concept
The Cibes C1 Pure is a machine room less cabin lift that requires much less space than a conventional elevator. All you need is a headroom of 2500 mm and a 100 mm lift pit.
Cabin lifts
Cibes C1 Pure
Comfortable, cost-efficient and timeless Scandinavian design
Are you looking for a comfortable, space-saving and cost-efficient lift? The automatic sliding doors and lift car controls with one-touch automatic operation of the Cibes C1 Pure offer you a premium level of comfort. In addition, the compact, ready-made lift concept speeds up installation time and reduces your building costs. Discover a unique, screw-driven lift with a clean and timeless design that blends in with any public space, business or home.
Fast & easy installation
Thanks to our ready-made, space-efficient concept, your lift has minimal impact on your building and can be installed as little as 3-4 days – much faster than conventional elevators.
Runs on standard electricity
Regardless of whether you are looking for a public, commercial or domestic lift, there is no need for rewiring. The Cibes C1 Pure runs on standard 1-phase or 3-phase electricity.
Reduced building costs
Installing a Cibes cabin lift requires less site preparation and much fewer building adaptations than installing a conventional elevator, which in turn results in reduced building costs.
Lift design with a modular shaft
The Cibes C1 Pure is available with an elegant and space-saving modular shaft of steel or glass panels to reduce building time and construction costs.
Lift design for a masonry shaft
The Cibes C1 Pure is also available without a modular shaft to fit inside a new or existing masonry shaftway – the perfect solution to replace an old lift installation.
Automatic sliding doors
The Cibes C1 Pure is the only screw-driven lift in the world to offer you the comfort of automatic sliding doors. Delivered as standard both for the lift car and the landings, our sliding doors are available with door panels in either steel or glass. Our doors are so-called telescopic doors that slide open towards the machinery side i.e. the same side as the control panel inside the lift car.

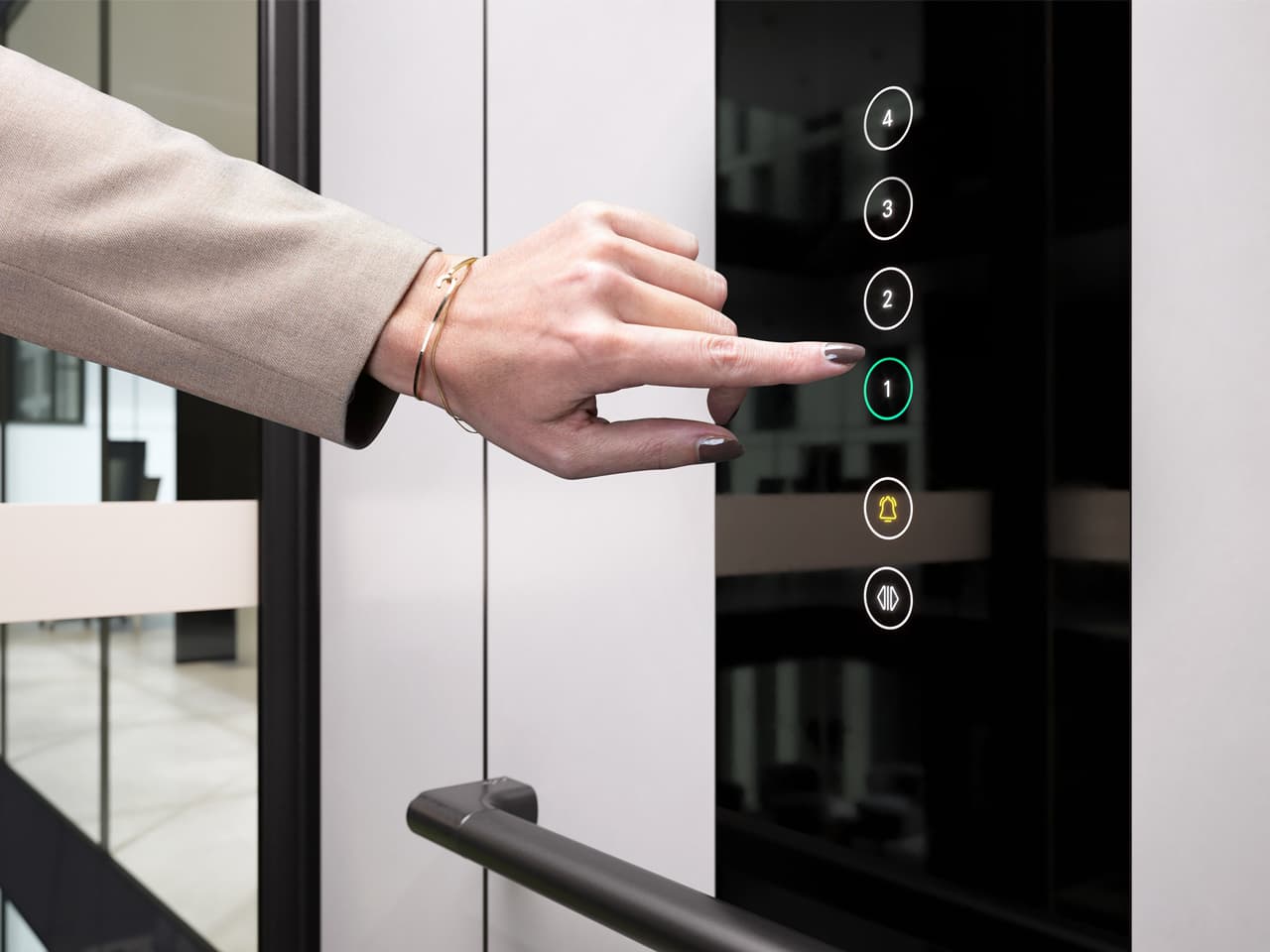

One touch operation
Our platform lifts require you to maintain constant pressure on the floor buttons to travel, but the Cibes C1 Pure is different. Thanks to the fully enclosed lift car, one single push of the button is enough to take you to the floor of your choice.
Energy Label A
The Cibes C1 Pure is equipped with our latest, optimised drive system as standard to offer you energy-efficient lift operation and a user experience with the highest level of comfort.
- Energy Label A
- Quiet operation
- Smooth travel
Energy performance measured in accordance with EN-ISO 25745-2:2015.
Environmental Product Declaration
The Environmental Product Declaration (EPD) delivers standardised, third-party verified documentation of Cibes C1 Pure’s environmental impact throughout its lifecycle. It also enables you to compare the environmental performance of Cibes C1 Pure to lifts of other manufacturers and makes the Cibes C1 Pure eligible for projects that need to comply with green building certification programs, such as BREEAM, LEED, or DGNB.
Energy-saving LED
The cabin ceiling is designed with durable, green LED technology and smart and energy-saving light programming.
Machine room less
The machinery is compact enough to fit inside the lift shaft.
2.5 m headroom
The Cibes C1 Pure only needs a 2.5 m ceiling on the top floor.
10 cm lift pit
The lift only requires a 10 cm deep pit on the bottom floor.
Seamless integration
Adaptable lift design that blends in with its surroundings.
Design your lift
Are you looking to buy a lift but want to try out your different design ideas first? Create your design with our Lift Configurator!
Design freedom
Our smart, modular wall system allows you to customise the lift car interior to your taste both before and after delivery. Flooring and lighting are other examples of how you can tailor the lift design to your requirements for style and comfort. And the best thing of all is that none of these choices are set in stone – the Cibes C1 Pure is easy to upgrade over time.
Floor options
Cabin finishes
Ceiling options
Accessibility options
Are you looking for a passenger lift that complies with European accessibility standards? The C1 Pure is available with a range of accessibility accessories that will adapt to the requirements of almost any public or commercial project.
Control panel compliant with EN 81-70
Robust and user-friendly, the inclined, horizontal control panel is delivered with extra-large floor buttons and finished in stainless steel. To create a unified and harmonious design, the horizontal control panel is always paired with a service panel in stainless steel to match.
The horizontal control panel is available both as a single unit for the machinery side (same side as the control panel), or as a double unit (same side as the control panel and opposite side).
Push buttons compliant with EN 81-70
To comply with EN 81-70, the 50×50 mm floor buttons of the horizontal control panel are tactile and equipped with backlight and Braille, while the 50×50 mm call buttons are tactile and equipped with backlight. To blend in with your lift design, the faceplate of the call buttons is available in any RAL or premium colour as an option.
Specifications and model details
Technical information
- Installation:Indoor
- Rated load:900 x 950 mm – 300 kg, 900 x 1200 mm – 375 kg, 900 x 1400 mm – 450 kg, 1100 x 1200 mm – 525 kg, 1100 x 1400 mm – 630 kg, 1100 x 1700 mm – 630 kg
- Power supply:3 × 230 VAC /3 × 400 VAC, 50/60 Hz, 16 A, min. 5 × 2,5 mm², 1 × 230 VAC 50/60 Hz, 32 A, min. 3 × 6,0 mm²
- Speed:Max 0.15 m/s
- Min headroom:Top floor 2500 mm
- Lift pit:100 mm (120 mm if the floor is fitted with wood laminate or tiles)
- Drive system:Screw and nut
- Max travel:15 m
- Max number of stops:6
- Lift controls:One touch (automatic drive)
- Motor Power:2.2 kW
- Machine room:Integrated (MRL)
- Door configuration:Single access/open-through access
- Directives and standards:MD 2006/42/EC, applicable parts of EN 81-41, EN 81-20 and EN 81-70
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Cibes C1 Pure.
View specifications
