All-inclusive lift concept
The lift is delivered in ready-made modules with everything you need for installation, including a modular lift shaft to reduce construction costs.
Platform lifts

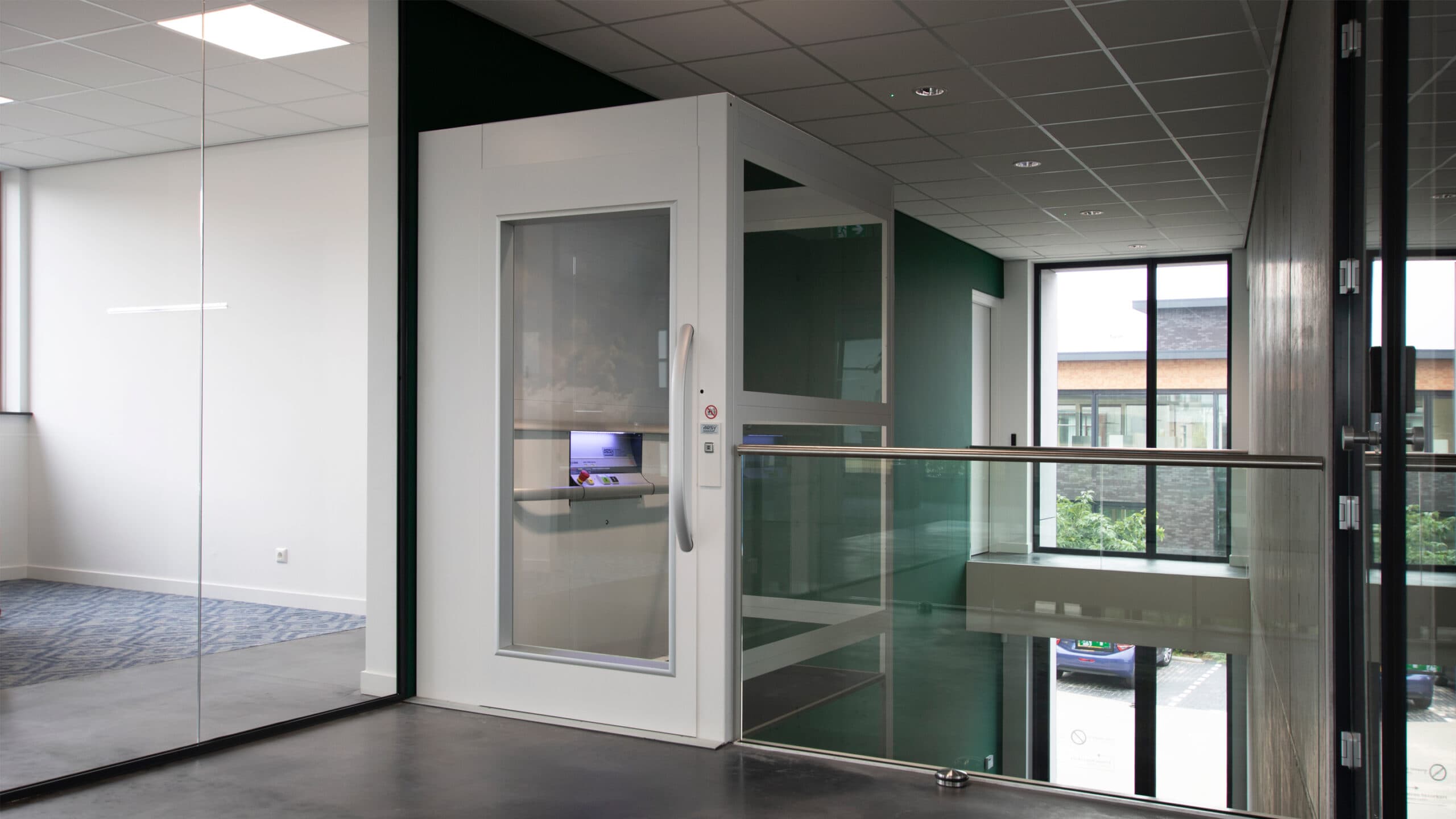

Cibes A5000
Simple and timeless wheelchair accessible platform lift
Delivered as an all-inclusive lift concept, the Cibes A5000 makes it easy for you to integrate the lift with new and existing buildings without major construction work. The lift design is neutral and timeless enough to blend in with most architectural styles. In addition, the robust design and wide range of lift sizes and accessibility options, make the Cibes A5000 a great choice for shops, restaurants, offices and public buildings.
Plug & play electrics
All electrics are plug & play and your lift works with standard 1-phase or 3-phase electricity. Lift installation generally does not require any rewiring.
Space-efficient lift solution
Because the Cibes A5000 is machine room less and requires no lift pit, nor extra headroom, the lift makes extremely efficient use of your space.
Installation in 2-3 days
Thanks to our ready-made concept and space-saving design it is possible to install your platform lift very fast. 2-3 days is all we need for a 2-stop lift!
Accessiblity lift Cibes A5000
One of the most important things when buying a passenger lift is choosing the right platform size. The standard sizes (1000×1467 and 1100×1467 mm) are suitable for wheelchairs, walkers and prams, while the largest size (1000×1967 mm) is big enough for most mobility scooters.
Machine room less
To take up as little space as possible, the screw-driven machinery and electrics fit inside the double wall behind the passenger platform.
No lift pit needed
To reduce your building costs, the Cibes A5000 can be installed directly on the floor with an access ramp, or with a floor recess of just 5 centimetres.
Low headroom
While conventional elevators need a lot of headroom on the top floor, a Cibes A5000 with standard doors only requires a headroom of 2.3 metres.
EcoSilent drive
The EcoSilent drive system makes lift operation 45% more energy-efficient and virtually soundless. Equipped with our optional drive system, the lift generates a sound of only 40 dB*, low enough to blend in with the background noises of a quiet library.
*Decibels measured 2 m from the lift, at constant speed and with a 150 kg load. All tests conducted by Springwell Audio AB, member of the Swedish Acoustical Society, www.springwellaudio.se.
Specifications and model details
Technical information
- Installation:Indoor
- Rated load:400/500 kg
- Power supply:1 × 230 VAC, 50 Hz, 16 A, min. 3 × 2,5 mm², 3 × 230 VAC/3 × 400 VAC, 50 Hz, 16 A, min. 5 × 2,5 mm²
- Speed:Max 0.15 m/s
- Min headroom:2300 mm (full-height door)
- Lift pit:50 mm or 0 mm with access ramp
- Drive system:Screw and nut
- Max travel:15 m
- Max number of stops:6
- Lift controls:One touch (automatic drive) on landings, hold-to-run on platform
- Motor Power:2.2 kW
- Machine room:Integrated (MRL)
- Door configuration:Single access, open-through, adjacent
- Directives and standards:MD 2006/42/EC, EN 81-41
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Cibes A5000.
